904109 | HELUKABEL

Sealing cable gland, PG21, 30 mm, Clamping range 11.5 to 15.5 mm, IP68, metal, 904109

Order No.: 93F9219
EAN: 4060892355141
MPN:
904109
Series: UNI-DICHT-MS
904109 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
8.4847 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
212.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
8.4847 €

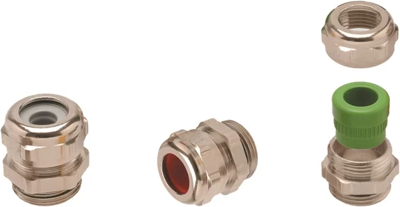

Sealing gland, 904109, HELUKABEL

Nickel plated brass sealing gland with optimum strain relief through rubber seal. This product is easy to assemble, time and cost savings.

Features

  • Large-area sealing
  • Large clamping areas

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
Colour metal
Thread size PG21
max. clamping range 15.5 mm
Degree of protection (IP) IP68
max. operating temperature 130 °C
min. operating temperature -40 °C
spanner size 30 mm
Material brass, nickel-plated
Product type sealing cable gland
min. clamping range 11.5 mm
Logistics
Property Value
Customs tariff number 74122000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
