904106 | HELUKABEL

Sealing cable gland, PG16, 24 mm, Clamping range 11.5 to 15.5 mm, IP68, metal, 904106

Order No.: 93F9218
EAN: 4060892355110
MPN:
904106
Series: UNI-DICHT-MS
904106 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
5.2836 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
264.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
5.2836 €

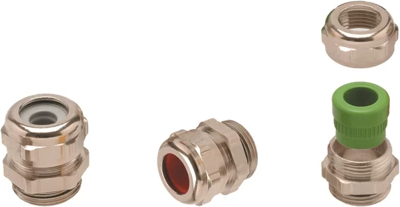

Sealing gland, 904106, HELUKABEL

Nickel plated brass sealing gland with optimum strain relief through rubber seal. This product is easy to assemble, time and cost savings.

Features

  • Large-area sealing
  • Large clamping areas

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Colour metal
Degree of protection (IP) IP68
max. clamping range 15.5 mm
Product type sealing cable gland
min. operating temperature -40 °C
Material brass, nickel-plated
spanner size 24 mm
max. operating temperature 130 °C
min. clamping range 11.5 mm
Thread size PG16
Logistics
Customs tariff number 74122000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
