904088 | HELUKABEL

Sealing cable gland, PG7, 14 mm, Clamping range 4 to 6.5 mm, IP68, metal, 904088

Order No.: 93F9215
EAN: 4060892354939
MPN:
904088
Series: UNI-DICHT-MS
904088 HELUKABEL Cable Glands

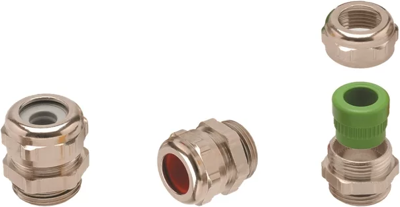

Image may differ
Unit Price (€ / pc.)
2.9869 € *
Available in 5 Days: 750 pcs. - if ordered today
Total Price:
149.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.9869 €

Sealing gland, 904088, HELUKABEL

Nickel plated brass sealing gland with optimum strain relief through rubber seal. This product is easy to assemble, time and cost savings.

Features

  • Large-area sealing
  • Large clamping areas

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
Material brass, nickel-plated
Product type sealing cable gland
Degree of protection (IP) IP68
max. operating temperature 130 °C
min. clamping range 4 mm
Thread size PG7
min. operating temperature -40 °C
Colour metal
spanner size 14 mm
max. clamping range 6.5 mm
Logistics
Property Value
Customs tariff number 74122000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
