90364 | HELUKABEL
Sealing cable gland, PG13.5, 24 mm, Clamping range 11 to 15.5 mm, IP68, white, 90364
Unit Price (€ / pc.)
4.284 € *
Available in 5 Days: 50 pcs. - if ordered today

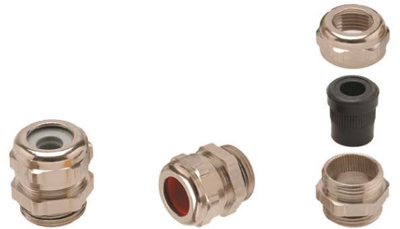

Sealing gland, 90364, HELUKABEL
Nickel plated brass sealing gland with colour-coded Soft PVC inserts.
Features
- Easy to assemble, time and cost savings
- Large-area sealing
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Colour | white | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 15.5 mm | |
| Product type | sealing cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 24 mm | |
| max. operating temperature | 105 °C | |
| min. clamping range | 11 mm | |
| Thread size | PG13.5 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
