903546 | HELUKABEL

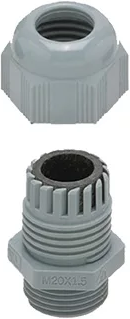

Cable gland, M32, 36 mm, Clamping range 11 to 15 mm, IP66/IP68, dark gray, 903546
Unit Price (€ / pc.)
1.4518 € *
Available in 5 Days: 750 pcs. - if ordered today
Total Price:
36.30 € *
Price list
Quantity
Price per unit*
25 pcs.
1.4518 €
50 pcs.
1.3685 €
100 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 903546, HELUKABEL
The 903546 cable gland cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.
Features
- Phosphor-free
- Silicone-free
- Cadmium-free
- Watertight, dust-tight
- Große Klemmbereiche
- With anti-kink spiral for mobile use
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 36 mm | |
| Thread size | M32 | |
| Degree of protection (IP) | IP66/IP68 | |
| Product type | cable gland | |
| Material | PA | |
| max. clamping range | 15 mm | |
| min. operating temperature | -20 °C | |
| min. clamping range | 11 mm | |
| Colour | dark gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
