90316 | HELUKABEL

Cable gland, PG29, 40 mm, Clamping range 18 to 25 mm, IP68/IP69K, metal, 90316

Order No.: 93F8904
EAN: 4060892366338
MPN:
90316
Series: HSK-MS-L
90316 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
27.6794 € *
Available in 5 Days: 75 pcs. - if ordered today
Total Price:
691.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
27.6794 €

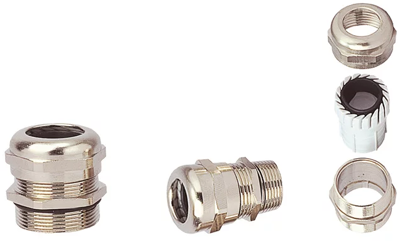

Cable gland, 90316, HELUKABEL

Nickel plated brass cable gland with long threaded connection.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Large clamping areas

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
max. operating temperature 100 °C
max. clamping range 25 mm
min. clamping range 18 mm
Colour metal
Material brass, nickel-plated
Thread size PG29
min. operating temperature -40 °C
spanner size 40 mm
Degree of protection (IP) IP68/IP69K
Product type cable gland
Logistics
Customs tariff number 85389099
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
