90315 | HELUKABEL

Cable gland, PG21, 30 mm, Clamping range 13 to 18 mm, IP68/IP69K, metal, 90315

Order No.: 93F8903
EAN: 4060892366321
MPN:
90315
Series: HSK-MS-L
90315 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
17.1122 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
427.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
17.1122 €

Cable gland, 90315, HELUKABEL

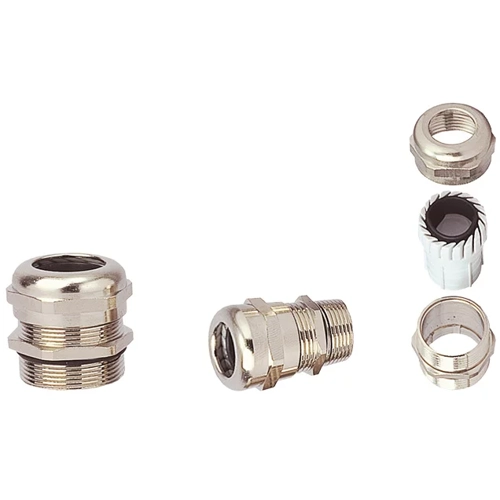

Nickel plated brass cable gland with long threaded connection.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Large clamping areas

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Colour metal
Degree of protection (IP) IP68/IP69K
max. clamping range 18 mm
Product type cable gland
min. operating temperature -40 °C
Material brass, nickel-plated
spanner size 30 mm
max. operating temperature 100 °C
min. clamping range 13 mm
Thread size PG21
Logistics
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
