90311 | HELUKABEL
Cable gland, PG9, 17 mm, Clamping range 4 to 8 mm, IP68/IP69K, metal, 90311
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 6 Weeks

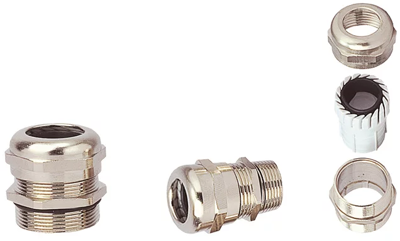

Cable gland, 90311, HELUKABEL
Nickel plated brass cable gland with long threaded connection.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Thread size | PG9 | |
| max. clamping range | 8 mm | |
| Degree of protection (IP) | IP68/IP69K | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| spanner size | 17 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| min. clamping range | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
