90308 | HELUKABEL

Cable gland, PG42, 57 mm, Clamping range 32 to 38 mm, IP68/IP69K, 90308

Order No.: 12H0956
EAN: 4060892365898
MPN:
90308
Series: HSK-MS
90308 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
89.4285 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
447.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
89.4285 €

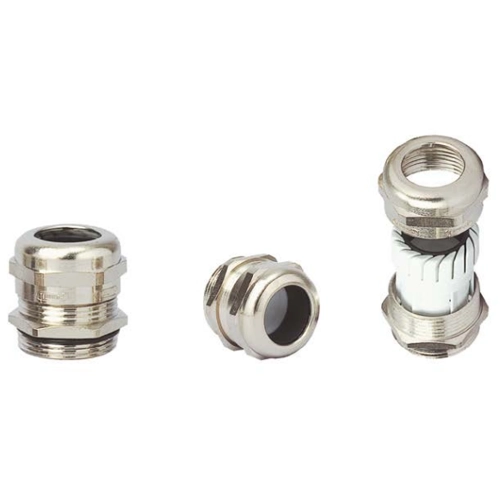

Cable gland, 90308, HELUKABEL

Nickel plated brass cable gland for high performance applications.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Degree of protection (IP) IP68/IP69K
max. clamping range 38 mm
Product type cable gland
min. operating temperature -40 °C
Material brass, nickel-plated
spanner size 57 mm
max. operating temperature 100 °C
min. clamping range 32 mm
Thread size PG42
Logistics
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
