90304 | HELUKABEL

Cable gland, PG16, 24 mm, Clamping range 10 to 14 mm, IP68/IP69K, 90304

Order No.: 12H0950
EAN: 4060892365850
MPN:
90304
Series: HSK-MS
90304 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
4.9623 € *
Available in 5 Days: 300 pcs. - if ordered today
Total Price:
248.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
4.9623 €

Cable gland, 90304, HELUKABEL

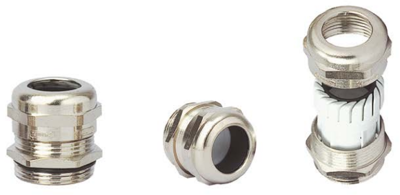

Nickel plated brass cable gland for high performance applications.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
max. operating temperature 100 °C
Product type cable gland
Material brass, nickel-plated
Degree of protection (IP) IP68/IP69K
min. operating temperature -40 °C
Thread size PG16
spanner size 24 mm
max. clamping range 14 mm
min. clamping range 10 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
