90293 | HELUKABEL
Cable gland, M20, 22 mm, Clamping range 6 to 12 mm, IP68/IP69K, 90293
Unit Price (€ / pc.)
5.1527 € *
Available in 5 Days: 400 pcs. - if ordered today

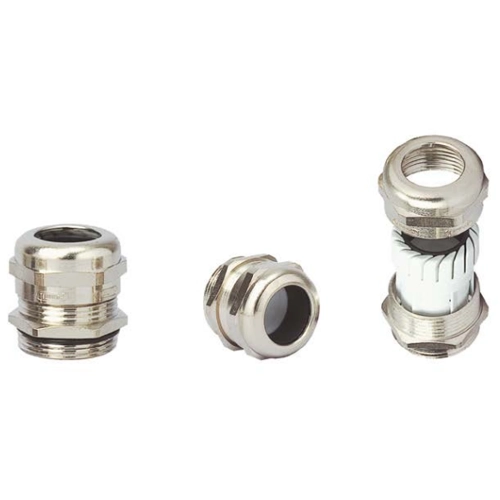

Cable gland, 90293, HELUKABEL
Nickel plated brass cable gland for high performance applications.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Thread size | M20 | |
| max. clamping range | 12 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C | |
| Product type | cable gland | |
| min. clamping range | 6 mm | |
| Material | brass, nickel-plated | |
| spanner size | 22 mm | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
