90272 | HELUKABEL

Folding profile, M20, 24 mm, IP68, gray, 90272

Order No.: 93F9472
EAN: 4060892368400
MPN:
90272
Series: PA-OF
90272 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
8.33 € *
Available in 5 Days: 200 pcs. - if ordered today
Total Price:
208.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
8.33 €

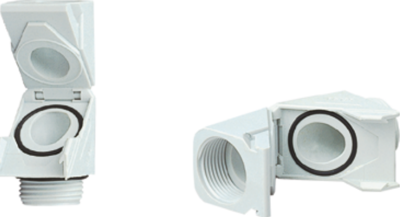

Folding profile, 90272, HELUKABEL

The 90272 is a PA folding profile for simple cable insertion. The profile can be re-opened at any time.

Features

  • Halogen-free
  • Phosphor-free
  • Silicone-free

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
spanner size 24 mm
Colour gray
Degree of protection (IP) IP68
min. operating temperature -20 °C
max. operating temperature 80 °C
Material PA
Length 35 mm
Thread size M20
Product type folding profile
Logistics
Property Value
Customs tariff number 39269097
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
