90204 | HELUKABEL

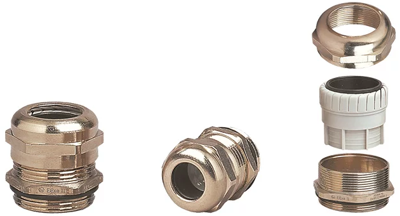

Cable gland, Ex, PG16, 24 mm, Clamping range 10 to 14 mm, IP68/IP69K, metal, 90204

Order No.: 93F8908
EAN: 4060892366758
MPN:
90204
Series: HSK-MS-EX
90204 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
13.0424 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
652.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
13.0424 €

Cable gland, 90204, HELUKABEL

Nickel plated brass EX cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Large clamping areas

Applications

  • Machine and plant construction
  • Automation technology
  • Control cabinet construction
  • Installation technology
Technical specifications
Filter Property Value
Colour metal
Thread size PG16
max. clamping range 14 mm
Degree of protection (IP) IP68/IP69K
max. operating temperature 95 °C
min. operating temperature -20 °C
spanner size 24 mm
Material brass, nickel-plated
Version Ex
Product type cable gland
min. clamping range 10 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
