90004 | HELUKABEL

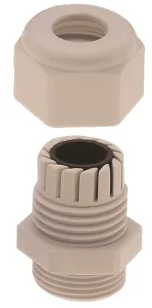

Cable gland, PG16, 27 mm, Clamping range 10 to 14 mm, IP68/IP69K, gray, 90004

Order No.: 12H0333
EAN: 4060892361821
MPN:
90004
Series: HSK
90004 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
2.142 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
107.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.142 €

Cable gland, 90004, HELUKABEL

PA cable gland for high performance applications.

Features

  • Halogen-free
  • Phosphor-free
  • Silicone-free
  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
max. operating temperature 100 °C
max. clamping range 14 mm
min. clamping range 10 mm
Colour gray
Material PA
Thread size PG16
min. operating temperature -40 °C
spanner size 27 mm
Degree of protection (IP) IP68/IP69K
Product type cable gland
Logistics
Customs tariff number 39269097
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
