170-01108 | HellermannTyton
Self-closing protective hose, inside Ø 32 mm, outside Ø 38 mm, polyester, black, 170-01108
Order No.: 91F4677
EAN: 4031026404387
MPN:
170-01108
Twist-In-FR 38-PET-BK
Series: Helagaine Twist-In-FR
Unit Price (€ / mtr.)
28.9765 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
434.65 € *
Price list
Quantity
Price per unit*
15 mtr.
28.9765 €
30 mtr.
28.1792 €
60 mtr.
27.4057 €
120 mtr.
26.6084 €
*incl. VAT plus shipping costs
Subject to prior sale

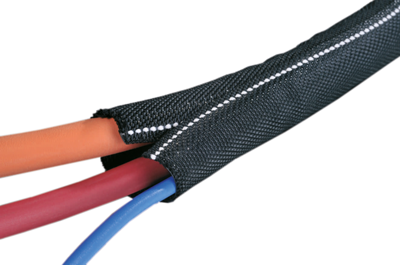

Self-locking conduit, flame retardant, type HellermannTyton Twist-In-FR.
Easy installation and removal of the conduit even on installed cables; Material: polyester (PET). Color: black with white fibers. Operating temperatures: –50 to +125 °C. Melting point: +240 °C. Fire protection properties: to UL 94 V-0 and FMVSS 302, self-extinguishing. Certifications: NF F 16-101/16-102.
Technical attributes (type, bundle diameter min./max., weight): Twist-In-FR 38, 32/38 mm, 58 g/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 32 mm | |
| Outer diameter | 38 mm | |
| Material | polyester | |
| Colour | black | |
| Flame-retardant | Yes | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 15 meters |
| Customs tariff number | 58081000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
