170-01104 | HellermannTyton

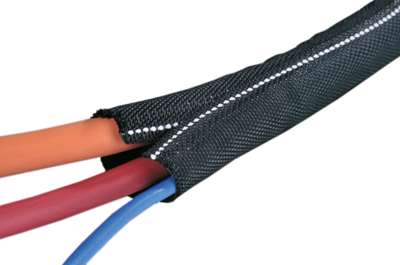

Self-closing protective hose, inside Ø 16 mm, outside Ø 19 mm, polyester, black, 170-01104
Order No.: 91F4673
EAN: 4031026404349
MPN:
170-01104
Twist-In-FR 19-PET-BK
Series: Helagaine Twist-In-FR
Unit Price (€ / mtr.)
17.1122 € *
Available: 21 mtr.
Total Price:
17.11 € *
Price list
Quantity
Price per unit*
1 mtr.
17.1122 €
25 mtr.
15.0654 €
50 mtr.
14.5418 €
200 mtr.
13.7207 €
500 mtr.
13.2090 €
*incl. VAT plus shipping costs
Subject to prior sale
Self-locking conduit, flame retardant, type HellermannTyton Twist-In-FR.
Easy installation and removal of the conduit even on installed cables; Material: polyester (PET). Color: black with white fibers. Operating temperatures: –50 to +125 °C. Melting point: +240 °C. Fire protection properties: to UL 94 V-0 and FMVSS 302, self-extinguishing. Certifications: NF F 16-101/16-102.
Technical attributes (type, bundle diameter min./max., weight): Twist-In-FR 19, 16/19 mm, 28.7 g/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | Yes | |
| Material | polyester | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -50 °C | |
| Colour | black | |
| Outer diameter | 19 mm | |
| Inner diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Reel with 25 meters |
| Customs tariff number | 58063210 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
