170-01102 | HellermannTyton
Self-closing protective hose, inside Ø 10 mm, outside Ø 13 mm, polyester, black, 170-01102
Order No.: 91F4672
EAN: 4031026404325
MPN:
170-01102
Twist-In-FR 13-PET-BK
Series: Helagaine Twist-In-FR
Unit Price (€ / mtr.)
13.4113 € *
Available: 49 mtr.
Total Price:
13.41 € *
Price list
Quantity
Price per unit*
1 mtr.
13.4113 €
10 mtr.
11.8048 €
50 mtr.
10.9956 €
200 mtr.
10.3649 €
400 mtr.
9.9484 €
*incl. VAT plus shipping costs
Subject to prior sale

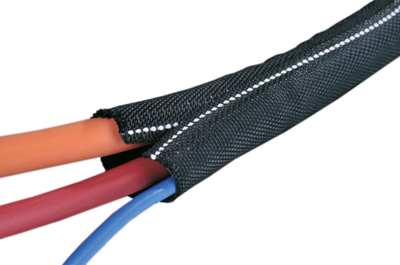

Self-locking conduit, flame retardant, type HellermannTyton Twist-In-FR.
Easy installation and removal of the conduit even on installed cables; Material: polyester (PET). Color: black with white fibers. Operating temperatures: –50 to +125 °C. Melting point: +240 °C. Fire protection properties: to UL 94 V-0 and FMVSS 302, self-extinguishing. Certifications: NF F 16-101/16-102.
Technical attributes (type, bundle diameter min./max., weight): Twist-In-FR 13, 10/13 mm, 21.2 g/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | Yes | |
| Material | polyester | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -50 °C | |
| Colour | black | |
| Outer diameter | 13 mm | |
| Inner diameter | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Reel with 50 meters |
| Customs tariff number | 58081000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
