170-01100 | HellermannTyton

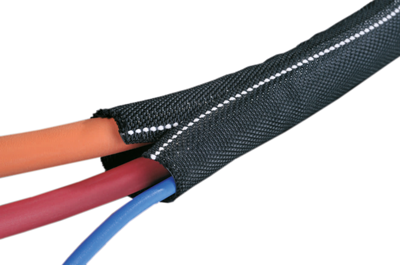

Self-closing protective hose, inside Ø 4 mm, outside Ø 5 mm, polyester, black, 170-01100
Unit Price (€ / mtr.)
6.9615 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.96 € *
Price list
Quantity
Price per unit*
1 mtr.
6.9615 €
10 mtr.
6.1285 €
150 mtr.
5.3669 €
300 mtr.
5.1646 €
1200 mtr.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale
Self-locking conduit, flame retardant, type HellermannTyton Twist-In-FR.
Easy installation and removal of the conduit even on installed cables; Material: polyester (PET). Color: black with white fibers. Operating temperatures: –50 to +125 °C. Melting point: +240 °C. Fire protection properties: to UL 94 V-0 and FMVSS 302, self-extinguishing. Certifications: NF F 16-101/16-102.
Technical attributes (type, bundle diameter min./max., weight): Twist-In-FR 05, 4.0/5.0 mm, 10.25 g/m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 125 °C | |
| Outer diameter | 5 mm | |
| Material | polyester | |
| Flame-retardant | Yes | |
| Inner diameter | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 58081000 |
| Country of origin | FR |
| Original Packaging | Reel with 150 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
