170-01004 | HellermannTyton

Self-closing protective hose, inside Ø 16 mm, outside Ø 19 mm, PET, black, 170-01004

Order No.: 91F4663
EAN: 4031026404257
MPN:
170-01004
TWIST-IN 19
170-01004 HellermannTyton Protective Tubes
Image may differ
Unit Price (€ / mtr.)
12.1380 € *
Available: 96 mtr.
Leadtime: 1 Week **
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
1 mtr.
12.1380 €
25 mtr.
10.7576 €
50 mtr.
10.4125 €
100 mtr.
9.7937 €
500 mtr.
9.4010 €
*incl. VAT plus shipping costs
**Subject to prior sale

Self-locking conduit, type HellermannTyton Twist-In.

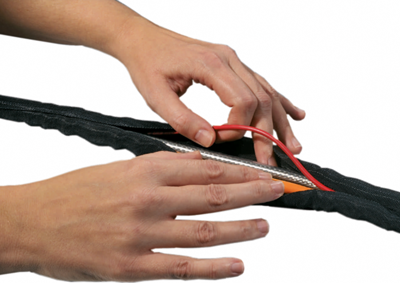

Easy installation and removal of the conduit even on installed cables; Material: polyester (PET). Color: black. Operating temperatures: –70 to +125 °C. Melting point: +255 °C. Fire protection properties: to FMVSS 302, self-extinguishing.

Technical attributes (type, bundle diameter min./max., weight): Twist–In 19, 16/19 mm, 28.7 g/m

Technical specifications
Inner diameter 16 mm
min. operating temperature -70 °C
max. operating temperature 125 °C
Flame-retardant No
Colour black
Material PET
Outer diameter 19 mm
Logistics
Original Packaging Reel with 25 meters
Customs tariff number 58063210
Country of origin FR
Compliance
Sustainable Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
