169-22501 | HellermannTyton

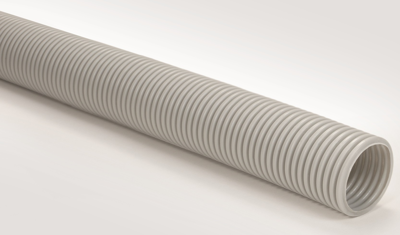

Corrugated hose, inside Ø 47.8 mm, outside Ø 53.6 mm, BR 100 mm, PE, gray, 169-22501
Unit Price (€ / mtr.)
6.1880 € *
Available: 23 mtr.
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
1 mtr.
6.1880 €
25 mtr.
5.6763 €
50 mtr.
5.3312 €
100 mtr.
4.9861 €
*incl. VAT plus shipping costs
Subject to prior sale
Corrugated flexible tubing, 169-22501, HELLERMANN
IWS corrugated flexible tubing. IWS corrugated flexible tubing holders are used to route and protect wires in control panels, switching systems and machine building.
Features
- Highly flexible
- Good abrasion resistance
- Halogenfree
- Compatible with the CTCC IWS corrugated tubing holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Bending radius | 100 mm | |
| Inner diameter | 47.8 mm | |
| Nominal width | 50 mm | |
| Outer diameter | 53.6 mm | |
| Material | PE | |
| Flame-retardant | No | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | DE |
| Original Packaging | Reel with 25 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
