169-22371 | HellermannTyton

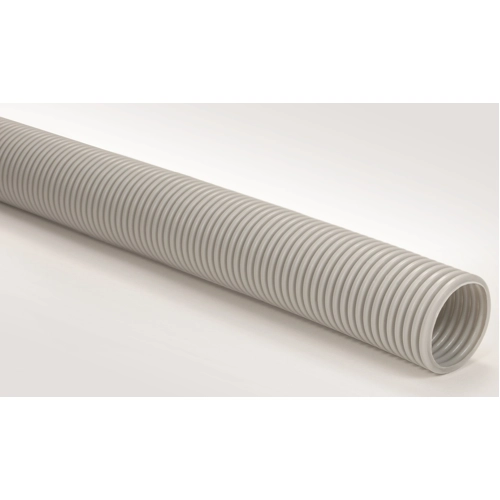

Corrugated hose, inside Ø 36.5 mm, outside Ø 41.6 mm, BR 90 mm, PE, gray, 169-22371
Unit Price (€ / mtr.)
4.5220 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
1 mtr.
4.5220 €
25 mtr.
4.1412 €
50 mtr.
3.8913 €
100 mtr.
3.6414 €
*incl. VAT plus shipping costs
Subject to prior sale
Corrugated flexible tubing, 169-22371, HELLERMANN
IWS corrugated flexible tubing. IWS corrugated flexible tubing holders are used to route and protect wires in control panels, switching systems and machine building.
Features
- Highly flexible
- Good abrasion resistance
- Halogenfree
- Compatible with the CTCC IWS corrugated tubing holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | No | |
| Colour | gray | |
| Nominal width | 37 mm | |
| min. operating temperature | -50 °C | |
| Outer diameter | 41.6 mm | |
| Inner diameter | 36.5 mm | |
| max. operating temperature | 80 °C | |
| Bending radius | 90 mm | |
| Material | PE |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 25 meters |
| Customs tariff number | 39173200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
