169-22291 | HellermannTyton

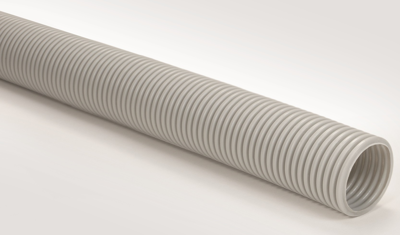

Corrugated hose, inside Ø 29.3 mm, outside Ø 34.1 mm, BR 60 mm, PE, gray, 169-22291
Unit Price (€ / mtr.)
3.3558 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 mtr.
3.3558 €
25 mtr.
3.0702 €
50 mtr.
2.8917 €
100 mtr.
2.7013 €
*incl. VAT plus shipping costs
Subject to prior sale
Corrugated flexible tubing, 169-22291, HELLERMANN
IWS corrugated flexible tubing. IWS corrugated flexible tubing holders are used to route and protect wires in control panels, switching systems and machine building.
Features
- Highly flexible
- Good abrasion resistance
- Halogenfree
- Compatible with the CTCC IWS corrugated tubing holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | No | |
| Colour | gray | |
| Nominal width | 29 mm | |
| min. operating temperature | -50 °C | |
| Outer diameter | 34.1 mm | |
| Inner diameter | 29.3 mm | |
| max. operating temperature | 80 °C | |
| Bending radius | 60 mm | |
| Material | PE |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 25 meters |
| Customs tariff number | 39173200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
