166-34405 | HellermannTyton

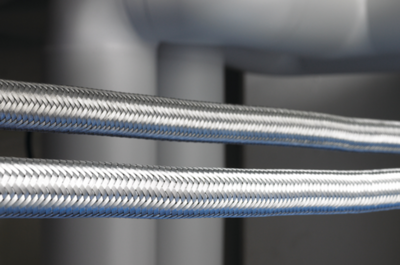

Protective hose with metal braid, inside Ø 37.6 mm, outside Ø 43.5 mm, BR 80 mm, steel, galvanized, silver, 166-34405

Order No.: 42P2300
EAN: 4031026309231
MPN:
166-34405
SCSB40 GS ML 10
Series: HelaGuard SCSB
166-34405 HellermannTyton Protective Tubes
Image may differ
Unit Price (€ / mtr.)
35.2835 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
352.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 mtr.
35.2835 €

SCSB Galvanised Steel Conduit, 166-34405, HELLERMANN TYTON

Metallic conduit with metallic overbraid.

FEATURES

  • High compression, tensile and impact strength
  • Highly resistant to abrasion
  • Very flexible
  • Provides EMC screening

Technical details

  • Min. Temperature: -100°C
  • Max. Temperature: 300°C
  • Material: Steel, galvanized
  • Color: silver
Technical specifications
Filter Property Value
Inner diameter 37.6 mm
Outer diameter 43.5 mm
Nominal width 40 mm
Bending radius 80 mm
Material steel, galvanized
Colour silver
Degree of protection (IP) IP40
Flame-retardant No
min. operating temperature -100 °C
max. operating temperature 300 °C
Logistics
Property Value
Country of origin GB
Customs tariff number 83071000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
