166-34404 | HellermannTyton

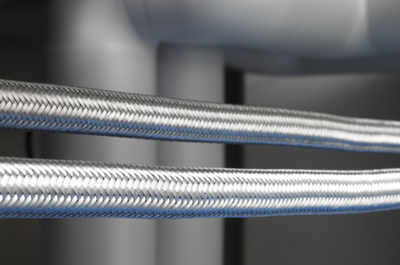

Protective hose with metal braid, inside Ø 28.1 mm, outside Ø 34 mm, BR 70 mm, steel, galvanized, silver, 166-34404
Unit Price (€ / mtr.)
25.1923 € *
Standard delivery time from the manufacturer is: On Request
SCSB Galvanised Steel Conduit, 166-34404, HELLERMANN TYTON
Metallic conduit with metallic overbraid.
FEATURES
- High compression, tensile and impact strength
- Highly resistant to abrasion
- Very flexible
- Provides EMC screening
Technical details
- Min. Temperature: -100°C
- Max. Temperature: 300°C
- Material: Steel, galvanized
- Color: silver
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 28.1 mm | |
| Outer diameter | 34 mm | |
| Nominal width | 32 mm | |
| Bending radius | 70 mm | |
| Material | steel, galvanized | |
| Colour | silver | |
| Degree of protection (IP) | IP40 | |
| Flame-retardant | No | |
| min. operating temperature | -100 °C | |
| max. operating temperature | 300 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 83071000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
