166-30729 | HellermannTyton

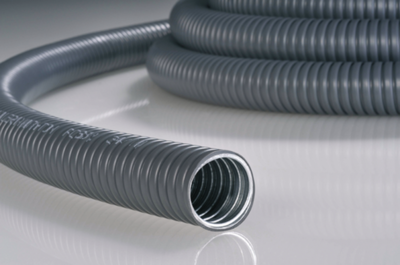

Spiral protective hose, inside Ø 48.4 mm, outside Ø 55 mm, BR 90 mm, GS/PVC, gray, 166-30729
Unit Price (€ / mtr.)
50.3608 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
503.61 € *
Price list
Quantity
Price per unit*
10 mtr.
50.3608 €
50 mtr.
47.5643 €
100 mtr.
43.3636 €
*incl. VAT plus shipping costs
Subject to prior sale
PCS Galvanised Steel Conduit, 166-30729, HELLERMANN TYTON
Metallic conduit with plastic coating.
FEATURES
- High compression, tensile and impact strength
- Very flexible
- Good resistance to alkalis and acids
- Good resistance to chemicals
Technical details
- Min. Temperature: -15°C
- Max. Temperature: 70°C
- Material: Polyvinyl Chloride
- Color: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 48.4 mm | |
| Outer diameter | 55 mm | |
| Nominal width | 50 mm | |
| Bending radius | 90 mm | |
| Material | GS/PVC | |
| Colour | gray | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | No | |
| min. operating temperature | -15 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 83071000 |
| Original Packaging | Reel with 10 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
