166-11902 | HellermannTyton

Plastic corrugated hose, inside Ø 11.8 mm, outside Ø 15.7 mm, BR 35 mm, PP, black, 166-11902

Order No.: 42P6076
EAN: 4031026325453
MPN:
166-11902
HG-PP16-PP-BK
Series: HG-PP
166-11902 HellermannTyton Protective Tubes
Image may differ
Unit Price (€ / mtr.)
1.4399 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 mtr.
1.4399 €
10 mtr.
1.3090 €
50 mtr.
1.2376 €
100 mtr.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

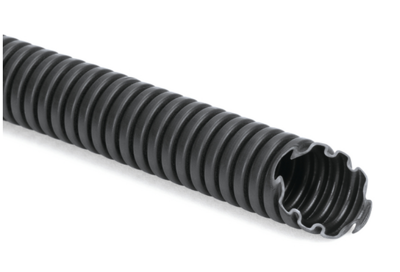

Corrugated hose, 166-11902, HellermannTyton

The 166-11902 plastic tube is used in machine building, electrical installations and buildings, often in concrete or plaster.

Features

  • Very flexible
  • Abrasion resistant
  • Resistant to acids and alkalis
  • Self-extinguishing to IEC 61386
Technical specifications
Inner diameter 11.8 mm
Outer diameter 15.7 mm
Nominal width 16 mm
Bending radius 35 mm
Material PP
Colour black
Degree of protection (IP) IP66
Flame-retardant Yes
min. operating temperature -20 °C
max. operating temperature 90 °C
Logistics
Country of origin GB
Customs tariff number 39173200
Original Packaging Reel with 50 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
