166-11506 | HellermannTyton

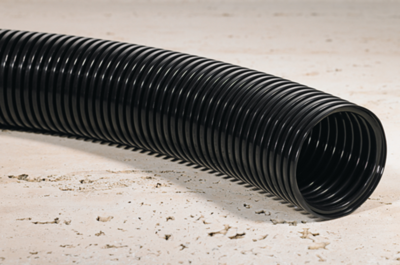

Corrugated hose, inside Ø 35.5 mm, outside Ø 42.5 mm, BR 60 mm, PA, black, 166-11506
Unit Price (€ / mtr.)
19.3613 € *
Available: 21 mtr.
Total Price:
19.36 € *
Price list
Quantity
Price per unit*
1 mtr.
19.3613 €
25 mtr.
18.2189 €
50 mtr.
17.0884 €
100 mtr.
15.9460 €
*incl. VAT plus shipping costs
Subject to prior sale
Non-Metallic Conduit, 166-11506, HELLERMANN TYTON
Cable Protection System, Non-Metallic Conduit System.
FEATURES
- Free of halogen, sulphur and phosphorus
- Excellent fatigue life
- Very flexible
- Good mechanical properties at low temperatures
- Highly resistant to solvents and oils
Technical details
- Min. Temperature: -50°C
- Max. Temperature: 110°C
- Material: Polyamide
- Color: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 35.5 mm | |
| Outer diameter | 42.5 mm | |
| Nominal width | 36 mm | |
| Bending radius | 60 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | Yes | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | GB |
| Original Packaging | Reel with 25 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
