166-11304 | HellermannTyton

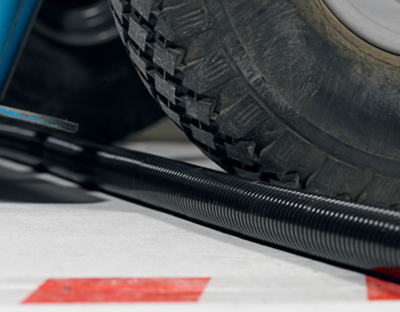

Corrugated hose, inside Ø 15.5 mm, outside Ø 21.2 mm, BR 55 mm, PA, black, 166-11304
Unit Price (€ / mtr.)
4.1769 € *
Standard delivery time from the manufacturer is: 1 Week
PA conduit, 166-11304, HELLERMANN TYTON
Polyamide protective hose, abrasion resistance.
FEATURES
- Abrasion resistance
- Resistant to solutions and oils
- Free of halogen, sulfur and phosphorus
- Good impact and shape resistance
Technical details
- Min. Temperature: -40°C
- Max. Temperature: 120°C
- Material: Polyamide
- Color: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 15.5 mm | |
| Outer diameter | 21.2 mm | |
| Nominal width | 17 mm | |
| Bending radius | 55 mm | |
| Material | PA | |
| Colour | black | |
| Degree of protection (IP) | IP66 | |
| Flame-retardant | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Reel with 50 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
