600-02934 | HellermannTyton

Protection and insulating grommet, inside Ø 2.5 mm, L 25 mm, black, CR, -65 to 120 °C, 600-02934

Order No.: 12H3355
EAN: 5022660690846
MPN:
600-02934
H25X25BK-CR-BK
Series: HELSYN H

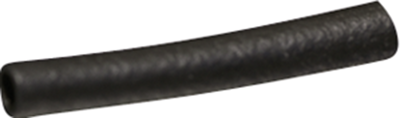

600-02934 HellermannTyton Insulating Tubes Image 1
600-02934 HellermannTyton Insulating Tubes Image 2
Image may differ
Unit Price (€ / pc.)
0.1107 € *
Available: 730 pcs.
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1107 €
100 pcs.
0.1012 €
500 pcs.
0.0952 €
1000 pcs.
0.0821 €
5000 pcs.
0.0726 €
*incl. VAT plus shipping costs
Subject to prior sale

Protective and insulating bushings series Helsyn H/TH, type HellermannTyton 600-.

Simple to install, with high elasticity and firm seating, suitable for the insulation and protection of small components, plug-in connections, cable transitions etc; Material: chloroprene (CR). Color: black. Operating temperatures: –65 to +120 °C. Elongation at tear: min. 500 %. Inflammability: UL 94 HB. Certifications/standards: BS-3858 Type 1, BS-4 G 198 Part 1 Type 1, DEF STAN 59-15 D2.

Technical attributes (type, inner diameter (Ø), length (L), wall thickness (S)): 600-02934, Ø 2.5, L 25, S 0.8 mm

Technical specifications
Filter Property Value
Colour black
Length 25 mm
max. operating temperature 120 °C
min. operating temperature -65 °C
Material CR
Wall thickness 0.8 mm
Version protection and insulating grommet
Inner diameter 2.5 mm
Logistics
Property Value
Country of origin GB
Customs tariff number 40091100
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
