166-23905 | HellermannTyton
45° hose screw fitting, M25, 23 mm, PA/brass, nickel plated, IP66, black, (L) 114 mm, 166-23905
Unit Price (€ / pc.)
64.7836 € *
Standard delivery time from the manufacturer is: 4 Weeks

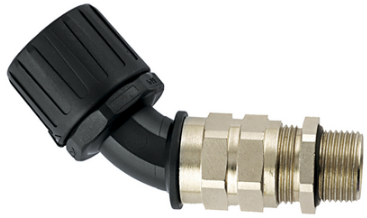

Elbow fitting, 166-23905, HellermannTyton
The 166-23905 is a elbow fitting with cable seal and strain relief.
Features
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M25 | |
| Nominal width | 23 mm | |
| Material | PA/brass, nickel plated | |
| Colour | black | |
| Length | 114 mm | |
| Degree of protection (IP) | IP66 | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 135 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 74122000 |
| Original Packaging | Bag with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
