340-12040 | HellermannTyton
Heatshrink tubing, 3:1, (12/4 mm), PE, crosslinked, black, 340-12040
Unit Price (€ / mtr.)
33.3676 € *
Available: 83 mtr.
Total Price:
33.37 € *
Price list
Quantity
Price per unit*
1 mtr.
33.3676 €
10 mtr.
30.1903 €
50 mtr.
28.5957 €
100 mtr.
27.0130 €
500 mtr.
25.4184 €
*incl. VAT plus shipping costs
Subject to prior sale

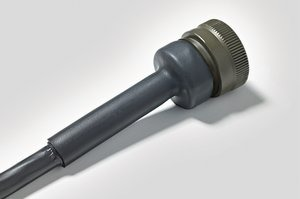

Thin-walled, flexible heat-shrink tube with hot-melting inner adhesive, good flow properties, excellent protection against moisture and corrosion. Approvals: SAE-AMS-DTL-23053/4.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| min. operating temperature | -55 °C | |
| contains glue inside | Yes | |
| max. operating temperature | 125 °C | |
| Inner diameter before shrinkage | 12 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 1.8 mm | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 120 °C | |
| Inner diameter after shrinkage | 4 mm | |
| Length | 100 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | NL |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
