339-00329 | HellermannTyton

Heatshrink tubing, 4:1, (3.17/0.94 mm), PTFE, transparent, 339-00329

Order No.: 42P5932
EAN: 4031026149592
MPN:
339-00329
TFE4-1/8-PTFE-CL
Series: TFE4

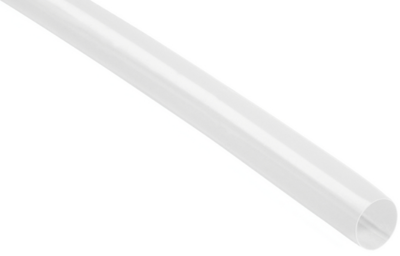

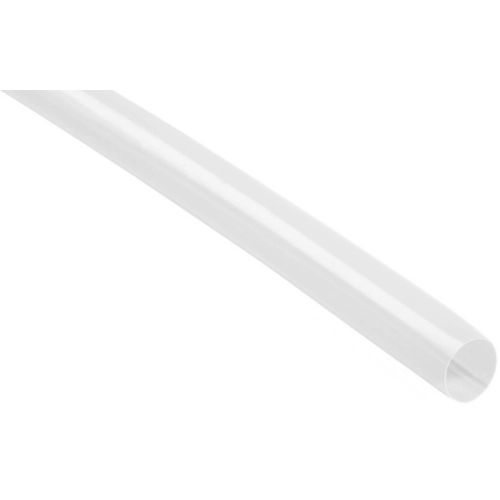

339-00329 HellermannTyton Heat Shrink Tubing Image 1
339-00329 HellermannTyton Heat Shrink Tubing Image 2
Image may differ
Unit Price (€ / pc.)
9.2820 € *
Available: 111 pcs.
Leadtime: 4 Weeks **
Total Price:
9.28 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2820 €
10 pcs.
8.5918 €
25 pcs.
7.8897 €
50 pcs.
7.4256 €
100 pcs.
6.9615 €
*incl. VAT plus shipping costs
**Subject to prior sale

Heat shrinkable tubing, 339-00329, HellermannTyton

The 339-00329 is ideal for high temperature applications, when resistance to aggressive fluids is required or a very thin walled tubing is needed, for example in pH-measuring instruments. TFE tubing is also used to reduce movement due to friction, covering cylinders for example.

Features

  • Very high temperature resistance
  • Extra thin wall translucent tubing
  • High abrasion resistance and good resistance against aggressive chemicals
Technical specifications
Shrinking rate 4:1
Inner diameter before shrinkage 3.17 mm
Inner diameter after shrinkage 0.94 mm
Length 1.2 m
min. operating temperature -65 °C
max. operating temperature 260 °C
contains glue inside No
Wall thickness 0.25 mm
Colour transparent
Material PTFE
Shrinking temperature 330 °C
Inch Size 1/8
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
