318-31900 | HellermannTyton
Heatshrink tubing, 3:1, (19/6 mm), PE, crosslinked, black, 318-31900
Unit Price (€ / pc.)
21.5509 € *
Available: 3 pcs.
Next delivery: 150 pcs. on 2025-12-05
Total Price:
21.55 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5509 €
10 pcs.
19.7540 €
50 pcs.
18.5521 €
100 pcs.
17.3621 €
500 pcs.
16.1602 €
*incl. VAT plus shipping costs
Subject to prior sale

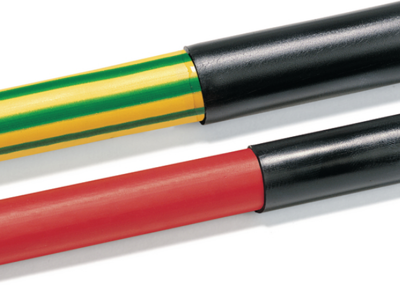

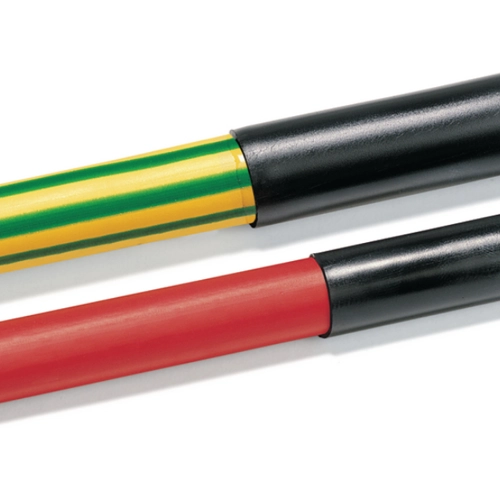

Heat shrink tubing, 318-31900, HellermannTyton
The 318-31900 heat shrink tubing is designed for environmental sealing and electrical insulation of wire splices, terminations and components.
Features
- Thin wall adhesive-lined heat shrink tubing
- Highly flame retardant
- Outer wall conforms to UL224
- High shrink ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | Yes | |
| Inner diameter before shrinkage | 19 mm | |
| max. operating temperature | 125 °C | |
| Length | 1.2 m | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 6 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 1.8 mm | |
| Shrinking rate | 3:1 | |
| Shrinking temperature | 110 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
