416-00000 | HellermannTyton
Heatshrink cap, PEC-3/1, d 3.0/1.0 mm, WT 1.0 mm, 25 mm
Unit Price (€ / pc.)
0.6069 € *
Available: 190 pcs.
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6069 €
100 pcs.
0.5474 €
500 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

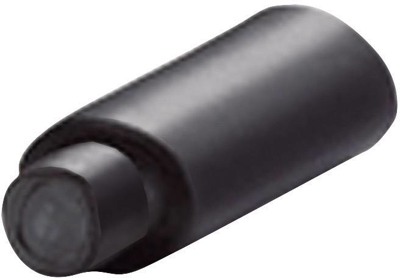

Pinched end cap, 416-00000, HellermannTyton
This pinched end cap can be used for mechanical and environmental protection of stub splices in electrical harnesses. Due to the fast and easy installation, this cap can be used for non-electrical applications as well.
Features
- With Inner adhesive layer for moisture sealing
- 3:1 shrink ratio
- Different diameters for wide application range

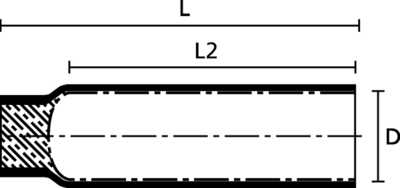

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 3:1 | |
| Inner diameter before shrinkage | 3 mm | |
| Inner diameter after shrinkage | 1 mm | |
| Length | 25 mm | |
| min. operating temperature | -45 °C | |
| max. operating temperature | 125 °C | |
| contains glue inside | No | |
| Wall thickness | 1 mm | |
| Colour | black | |
| Material | PE | |
| Shrinking temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 50 pieces |
| Customs tariff number | 39174000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
