633-06088 | HellermannTyton

Grommet, cable Ø 44 to 47 mm, PVC, gray, 633-06088

Order No.: 12H3544
EAN: 4031026186542
MPN:
633-06088
HV1608-PVC-GY-G1
Series: HV

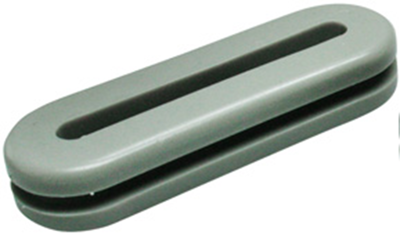

633-06088 HellermannTyton Grommets Image 1
633-06088 HellermannTyton Grommets Image 2
Image may differ
Unit Price (€ / pc.)
1.2376 € *
Available: 603 pcs.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1305 €
100 pcs.
1.0591 €
250 pcs.
0.9520 €
500 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale

Grommets made of PVC for flat cables, type HellermannTyton HV.

Material: soft PVC to UL 94 V-2. Operating temperatures: –30 to +60 °C, Shore A hardness: 56 ±5.0, color: gray.

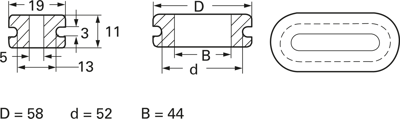

Type: HV1608, CD 58, d 52, B 44 mm

Technical specifications
Filter Property Value
Version oval
max. operating temperature 60 °C
Colour gray
Product type grommet
Wall thickness 3 mm
max. Cable diameter 47 mm
min. operating temperature -30 °C
Mounting hole size 52 mm
min. cable diameter 44 mm
Material PVC
Logistics
Property Value
Country of origin DE
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
