633-06078 | HellermannTyton

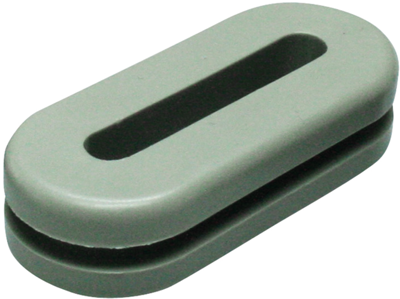

Grommet, cable Ø 29 to 32 mm, PVC, gray, 633-06078
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.9520 €
100 pcs.
0.8925 €
250 pcs.
0.7973 €
500 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
Grommets made of PVC for flat cables, type HellermannTyton HV.
Material: soft PVC to UL 94 V-2. Operating temperatures: –30 to +60 °C, Shore A hardness: 56 ±5.0, color: gray.

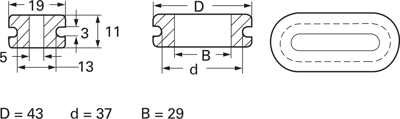

Type: HV1607, CD 43, d 37, B 29 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| max. Cable diameter | 32 mm | |
| Product type | grommet | |
| Wall thickness | 3 mm | |
| Mounting hole size | 37 mm | |
| max. operating temperature | 60 °C | |
| min. cable diameter | 29 mm | |
| Material | PVC | |
| min. operating temperature | -30 °C | |
| Version | oval |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
