633-02020 | HellermannTyton
Grommet, cable Ø 4 to 5 mm, PVC, black, 633-02020
Unit Price (€ / pc.)
0.0833 € *
Available: 887 pcs.
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0833 €
50 pcs.
0.0785 €
100 pcs.
0.0726 €
1000 pcs.
0.0655 €
5000 pcs.
0.0559 €
*incl. VAT plus shipping costs
Subject to prior sale
Grommets, type HellermannTyton HV
For round cables.
Material: soft PVC to UL 94 V-2
Operating temperatures: - 30 to +60 °C
Shore A hardness: 56 ±5.0
Color: black

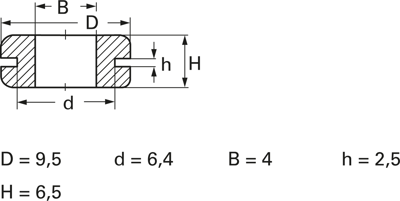

Type: HV1201B, D 9.5, d 6.4, B 4.0, h 2.5, H 6.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 5 mm | |
| Colour | black | |
| Mounting hole size | 6.4 mm | |
| Wall thickness | 2.5 mm | |
| Material | PVC | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -30 °C | |
| Product type | grommet | |
| min. cable diameter | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
| Original Packaging | Bag with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
