440-00002 | HellermannTyton

Cable entry frame, plastic, black, 440-00002

Order No.: 12H1102
EAN: 4031026686165
MPN:
440-00002
VarioPlate-16_Frame-PA66GF25-BK
Series: VarioPlate

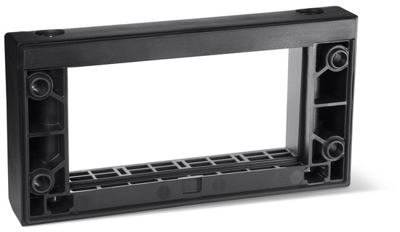

440-00002 HellermannTyton Grommets Image 1

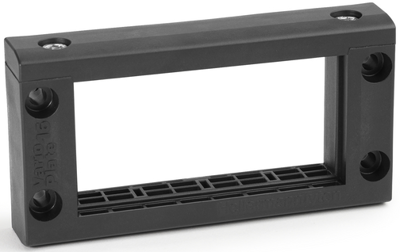

440-00002 HellermannTyton Grommets Image 2
Image may differ
Unit Price (€ / pc.)
34.3791 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
34.38 € *
Price list
Quantity
Price per unit*
1 pcs.
34.3791 €
10 pcs.
30.2379 €
20 pcs.
29.4287 €
40 pcs.
28.6076 €
160 pcs.
26.9535 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable entry frame, 440-00002, HellermannTyton

The cable entry system is used to install multiple cables of different diameters, with or without pre-terminated plugs or connectors, or wherever space is limited. It is available in 4 different frame sizes which correspond to the cut-out dimensions commonly used in panel building and for industrial machinery.

Features

  • Time and space saving design
  • Easy assembly, subsequent changes possible
  • Wall gasket included in frame design
  • Modular application for both insert sizes (S and L)
  • Integrated strain relief
  • For cut-out size 86 x 36 mm
  • Suitable for all common standard cut-out dimensions and drilling patterns
Technical specifications
Filter Property Value
Material plastic
max. operating temperature 140 °C
Product type cable entry frame
min. operating temperature -40 °C
Colour black
Length 61 mm
Logistics
Property Value
Country of origin DE
Original Packaging Carton with 10 pieces
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
