156-01203 | HellermannTyton
Cable tie, PA, (L x W) 202 x 4.6 mm, bundle-Ø 1 to 45 mm, gray, -40 to 150 °C, 156-01203
Order No.: 42P5664
EAN: 4031026477848
MPN:
156-01203
T50RDHA5.5x15-PA46-GY
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 1 Week

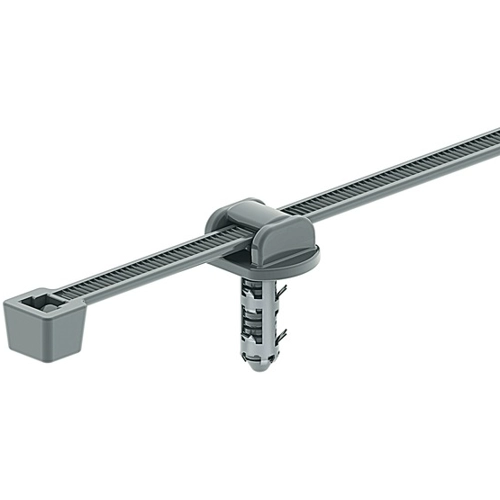

2-pieces fixing tie, 156-01203, HellermannTyton
This pre-assembled 2-piece fixing tie with deep hole anchor is suitable for use within blind holes with or without thread. The disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt. The high 'pull off' forces are due to the integrated metal clamp.
Features
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 1 mm | |
| Min holding force | 225 N | |
| max. Bundle diameter | 45 mm | |
| Product type | cable tie | |
| Length | 202 mm | |
| Colour | gray | |
| min. operating temperature | -40 °C | |
| Width | 4.6 mm | |
| max. operating temperature | 150 °C | |
| Halogen free | No | |
| Material | PA | |
| Version | internally interlocked |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1,000 pieces |
| Customs tariff number | 39269097 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
