156-01155 | HellermannTyton
Cable tie, PA, (L x W) 202 x 4.6 mm, bundle-Ø 1 to 45 mm, gray, -80 to 538 °C, 156-01155
Order No.: 42P5663
EAN: 4031026470719
MPN:
156-01155
T50RDHA8.4x20-PA46-GY
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 1 Week

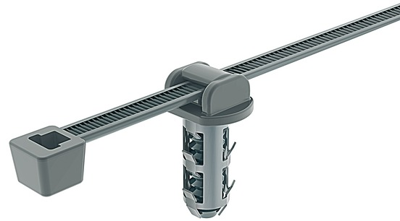

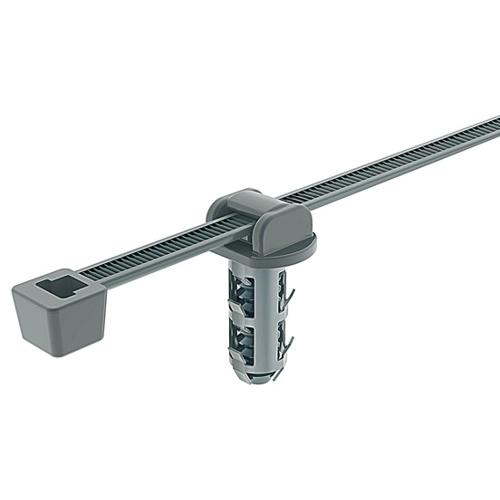

2-pieces fixing tie, 156-01155, HellermannTyton
This pre-assembled 2-piece fixing tie with deep hole anchor is suitable for use within blind holes with or without thread. The disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt. The high 'pull off' forces are due to the integrated metal clamp.
Features
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | gray | |
| Product type | cable tie | |
| Version | internally interlocked | |
| max. Bundle diameter | 45 mm | |
| min. Bundle diameter | 1 mm | |
| max. operating temperature | 538 °C | |
| Min holding force | 225 N | |
| Length | 202 mm | |
| min. operating temperature | -80 °C | |
| Width | 4.6 mm | |
| Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
