156-00264 | HellermannTyton
Cable tie, PA, (L x W) 158.8 x 4.6 mm, bundle-Ø 1.5 to 30 mm, black, -40 to 105 °C, 156-00264
Order No.: 42P5687
EAN: 4031026269931
MPN:
156-00264
T50SOSSFT6.5E-MDL-PA66HS-BK
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: 1 Week

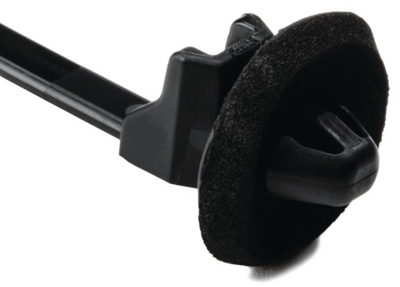

Fixing tie, 156-00264, HellermannTyton
This fixing tie is mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. The seal protects the interior and surrounding cables among other things from splash water.
Features
- One-piece fixing ties with cellular rubber disc
- Cellular rubber disc minimises ingress of dust, dirt and splash water
- Made from PA66 heat-stabilised material
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 1.5 mm | |
| Min holding force | 225 N | |
| max. Bundle diameter | 30 mm | |
| Product type | cable tie | |
| Length | 158.8 mm | |
| Colour | black | |
| UV-resistant | No | |
| min. operating temperature | -40 °C | |
| detachable closure | No | |
| Thickness | 1.3 mm | |
| Width | 4.6 mm | |
| max. operating temperature | 105 °C | |
| Halogen free | Yes | |
| Material | PA | |
| Version | with splay foot |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
