126-03100 | HellermannTyton
Cable tie, PA, (L x W) 158.8 x 4.6 mm, bundle-Ø 1.5 to 30 mm, green, -40 to 105 °C, 126-03100
Order No.: 42P5686
EAN: 4031026228266
MPN:
126-03100
T50SOSSFT6.5E-MDL-PA66HS-GN
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 1 Week

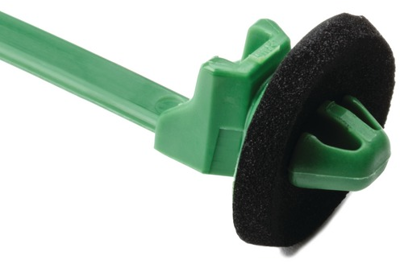

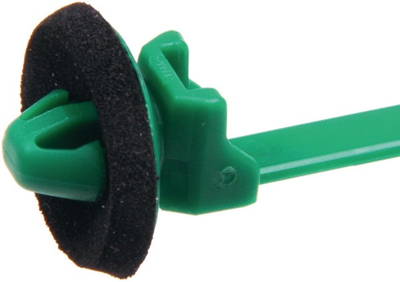

Fixing tie, 126-03100, HellermannTyton
This fixing tie is mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. The seal protects the interior and surrounding cables among other things from splash water.
Features
- One-piece fixing ties with cellular rubber disc
- Cellular rubber disc minimises ingress of dust, dirt and splash water
- Made from PA66 heat-stabilised material
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Thickness | 1.3 mm | |
| Colour | green | |
| Product type | cable tie | |
| detachable closure | No | |
| Version | with splay foot | |
| max. Bundle diameter | 30 mm | |
| min. Bundle diameter | 1.5 mm | |
| max. operating temperature | 105 °C | |
| UV-resistant | No | |
| Min holding force | 225 N | |
| Length | 158.8 mm | |
| min. operating temperature | -40 °C | |
| Width | 4.6 mm | |
| Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
