117-05350 | HellermannTyton
Cable tie, PA, (L x W) 305 x 4.7 mm, bundle-Ø 1.6 to 76.2 mm, black, -40 to 125 °C, 117-05350
Unit Price (€ / pc.)
0.4879 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.4403 €
100 pcs.
0.4046 €
500 pcs.
0.3808 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable tie inside serrated, 117-05350, HellermannTyton

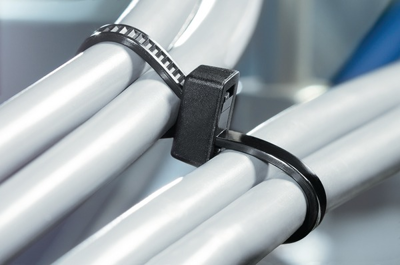

Double loop head tie is ideal for separation of two cable runs without the need for additional cable ties. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight). Additionally this tie is widely used within the packaging industry
Features

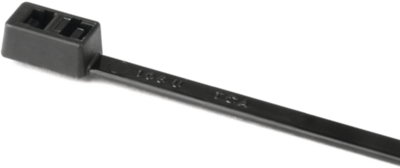

- Cable tie with two heads creating an inside and outside serrated loop
- Easy application either manually or with a processing tool
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Min holding force | 225 N | |
| Width | 4.7 mm | |
| max. Bundle diameter | 76.2 mm | |
| Material | PA | |
| Product type | cable tie | |
| min. Bundle diameter | 1.6 mm | |
| UV-resistant | No | |
| max. operating temperature | 125 °C | |
| Thickness | 1.4 mm | |
| min. operating temperature | -40 °C | |
| detachable closure | No | |
| Chemical resistant | Yes | |
| Halogen free | Yes | |
| Length | 305 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1,000 pieces |
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
