117-05050 | HellermannTyton
Cable tie, PA, (L x W) 210 x 4.7 mm, bundle-Ø 1.6 to 38 mm, black, -40 to 105 °C, 117-05050
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
10 pcs.
0.3332 €
100 pcs.
0.3094 €
500 pcs.
0.2856 €
1000 pcs.
0.2689 €
*incl. VAT plus shipping costs
Subject to prior sale

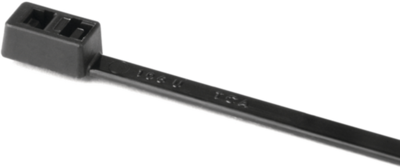

Cable tie inside serrated, 117-05050, HellermannTyton

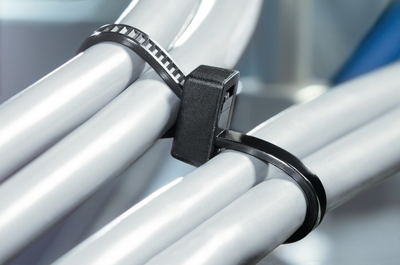

Double loop head tie is ideal for separation of two cable runs without the need for additional cable ties. Additionally this tie is widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).
Features
- Cable tie with two heads creating an inside and outside serrated loop
- Easy application either manually or with a processing tool
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 1.6 mm | |
| Material | PA | |
| max. operating temperature | 105 °C | |
| max. Bundle diameter | 38 mm | |
| Width | 4.7 mm | |
| detachable closure | No | |
| Halogen free | Yes | |
| Product type | cable tie | |
| Chemical resistant | Yes | |
| Thickness | 1.4 mm | |
| Min holding force | 225 N | |
| UV-resistant | No | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Length | 210 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
