117-05000 | HellermannTyton

Cable tie, PA, (L x W) 210 x 4.7 mm, bundle-Ø 1.6 to 38 mm, black, -40 to 85 °C, 117-05000

Order No.: 42P1522
EAN: 5022660324345
MPN:
117-05000
T50RDH-PA66-BK
Series: DH

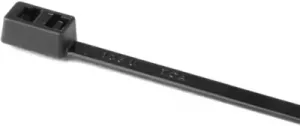

117-05000 HellermannTyton Cable Ties Image 1

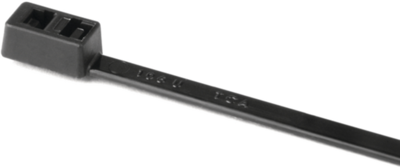

117-05000 HellermannTyton Cable Ties Image 2
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available: 85 pcs.
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
10 pcs.
0.3094 €
100 pcs.
0.2904 €
500 pcs.
0.2666 €
1000 pcs.
0.2511 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable tie inside serrated, 117-05000, HellermannTyton

Double loop head tie is ideal for separation of two cable runs without the need for additional cable ties. Additionally this tie is widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Cable tie with two heads creating an inside and outside serrated loop
  • Easy application either manually or with a processing tool
Technical specifications
Filter Property Value
Product type cable tie
Version with double locking head
Length 210 mm
Width 4.7 mm
Thickness 1.4 mm
min. Bundle diameter 1.6 mm
max. Bundle diameter 38 mm
Min holding force 225 N
Material PA
Colour black
detachable closure No
Chemical resistant Yes
UV-resistant No
Halogen free Yes
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
Property Value
Country of origin GB
Customs tariff number 39269097
Original Packaging Bag with 100 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
