115-00003 | HellermannTyton
Cable tie, releasable, PA, (L x W) 196 x 4.8 mm, bundle-Ø 2 to 50 mm, red, -40 to 85 °C, 115-00003
Unit Price (€ / pc.)
0.2451 € *
Available: 1,150 pcs.
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2451 €
25 pcs.
0.2142 €
100 pcs.
0.1928 €
500 pcs.
0.1761 €
1000 pcs.
0.1595 €
*incl. VAT plus shipping costs
Subject to prior sale
Releasable cable tie, 115-00003, HellermannTyton

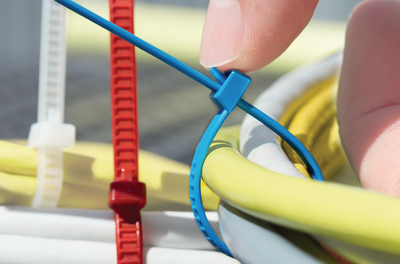

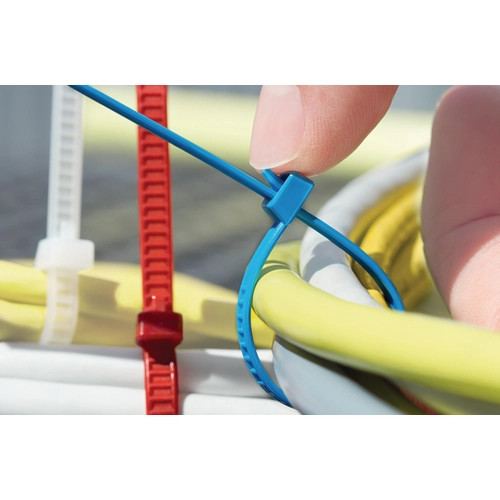

The 115-00003 offers some extra benefits, the serration is on the outside of the cable tie. This will minimise the risk of damage to cables or other elements. Additionally this prodzct is optimally suited for temporary identification within logistic, packaging, cable harness production or for testing purposes. The strap is released when pushing the extended pawl upwards. The risk of opening the cable tie accidentally is minimised.
Features
- Releasable and reusable cable tie
- Extended trigger for simple and quick release of ties
- Risk of accidental release is minimised
- Outside serration prevents damage to cable insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Width | 4.8 mm | |
| Version | externally interlocking | |
| Min holding force | 245 N | |
| Product type | cable tie | |
| max. operating temperature | 85 °C | |
| Length | 196 mm | |
| min. Bundle diameter | 2 mm | |
| detachable closure | Yes | |
| Thickness | 1.2 mm | |
| min. operating temperature | -40 °C | |
| Colour | red | |
| max. Bundle diameter | 50 mm | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 25 pieces |
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
