112-00025 | HellermannTyton
Cable tie, PA, (L x W) 123 x 9 mm, bundle-Ø 4 to 22 mm, black, UV resistant, -40 to 85 °C, 112-00025
No longer available from manufacturer
Unit Price (€ / pc.)
0.1630 € *
Available: 100 pcs.

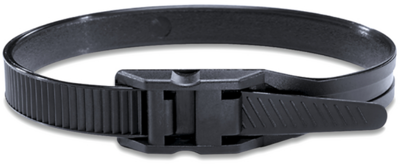

Cable tie, 112-00025, HellermannTyton

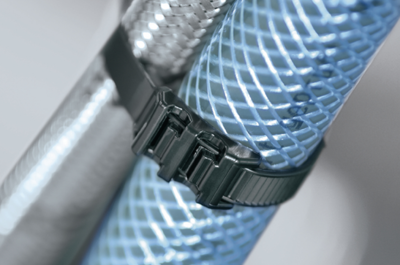

Robusto cable tie manufactured from PA11 has many technical features making them suitable for use in a variety of applications to fix and support cables, pipes and other elements. It offers an excellent resistance to chemicals in most challenging environments like offshore or on oil rigs and construction vehicles. In addition, the very good UV resistance makes it a perfect choice for solar panel installations.
Features
- Outside serrated cable tie with rounded head design
- Low insertion force for tool-free application
- High tensile strength with a single – or a double-bridged head
- Soft material for easy handling without damaging the bundle
- Low water absorption rate and high durability
- Prelocking possible by pushing the strap through the eyelet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Length | 123 mm | |
| Width | 9 mm | |
| Thickness | 1.7 mm | |
| min. Bundle diameter | 4 mm | |
| max. Bundle diameter | 22 mm | |
| Min holding force | 310 N | |
| Material | PA | |
| Colour | black | |
| detachable closure | No | |
| Chemical resistant | Yes | |
| UV-resistant | Yes | |
| Halogen free | Yes | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | in_review |
| SVHC free | Yes |
