111-92240 | HellermannTyton
Cable tie, stainless steel, (L x W) 630 x 7 mm, bundle-Ø 10 to 180 mm, metal, -80 to 538 °C, 111-92240

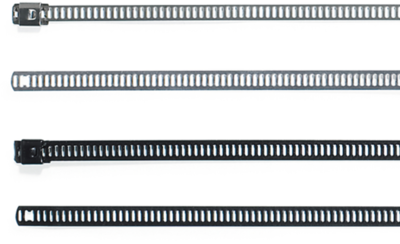

Stainless steel cable tie, 111-92240, HellermannTyton
The stainless steel cable tie can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from Mass Transit, Ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.
Features
- Similar in design to conventional 'plastic' cable ties
- Work on ratchet system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thickness | 0.4 mm | |
| Width | 7 mm | |
| Colour | metal | |
| UV-resistant | No | |
| Min holding force | 445 N | |
| Length | 630 mm | |
| max. operating temperature | 538 °C | |
| Halogen free | Yes | |
| min. operating temperature | -80 °C | |
| Material | stainless steel | |
| max. Bundle diameter | 180 mm | |
| Product type | cable tie | |
| min. Bundle diameter | 10 mm | |
| detachable closure | No | |
| Chemical resistant | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
