111-85480 | HellermannTyton

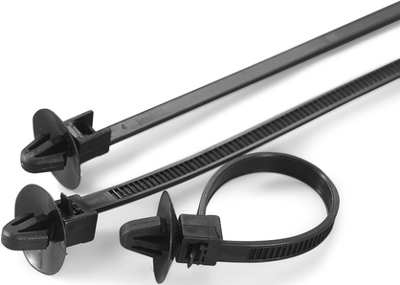

Cable tie, releasable, PA, (L x W) 160 x 5 mm, bundle-Ø 1.5 to 31 mm, black, -40 to 105 °C, 111-85480
Order No.: 13H4018
EAN: 5022660118463
MPN:
111-85480
RT50SD6-PA66HS-BK
Unit Price (€ / pc.)
0.2856 € *
Standard delivery time from the manufacturer is: 5 Weeks
Cable clip, 111-85480, HellermannTyton
Fixing tie with a diverse range of fixing possibility is ideal for use in many different industry, including automotive, aerospace and panel building.
Features
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
- Cable tie head always situated in a defined position
- Releasable and therefore reusable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Material | PA | |
| max. Bundle diameter | 31 mm | |
| Colour | black | |
| min. Bundle diameter | 1.5 mm | |
| Version | with expansion anchor | |
| Min holding force | 225 N | |
| max. operating temperature | 105 °C | |
| Product type | cable tie | |
| detachable closure | Yes | |
| Width | 5 mm | |
| Length | 160 mm | |
| Halogen free | Yes | |
| Thickness | 1.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
