111-01264 | HellermannTyton
Cable tie, PA, (L x W) 203.2 x 4.7 mm, bundle-Ø 1.5 to 50 mm, black, UV resistant, -40 to 105 °C, 111-01264
NCNR (non cancelable / non returnable)

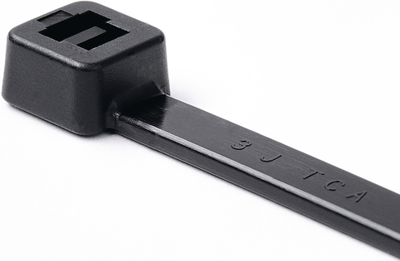

Cable tie inside serrated, 111-01264, HellermannTyton

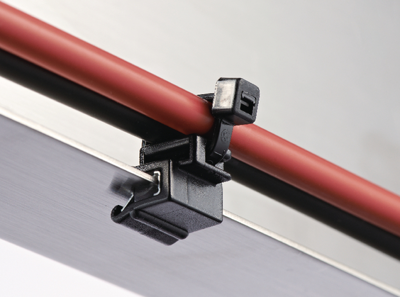

The GalvaLok cable tie has many technical features which make it suitable for use in many applications for fixing and supporting cables, pipes and other elements. The polyamide 11 used to manufacture these ties offers excellent resistance to chemicals in even the most challenging environments such as offshore, oil rigs, construction vehicles, trucks and trailer. This cable tie has excellent UV resistance as well as being highly resistant to chemicals like chlorides: recommended for use on galvanised steel, especially in solar panel installations. In addition, the material has a high impact resistance to low temperatures, which enables the GalvaLok tie to be used in areas where it is cold, for example at high altitudes or in Nordic countries.
Features
- High UV resistance for long-term outdoor applications
- Stable technical performance even at very low temperatures
- High resistance to chemicals, including chlorides
- Low water absorption rate for consistent technical performance and high durability
| Filter | Property | Value |
|---|---|---|
| Product type | cable tie | |
| Version | internally interlocked | |
| Length | 203.2 mm | |
| Width | 4.7 mm | |
| Thickness | 1.3 mm | |
| min. Bundle diameter | 1.5 mm | |
| max. Bundle diameter | 50 mm | |
| Min holding force | 200 N | |
| Material | PA | |
| Colour | black | |
| detachable closure | No | |
| UV-resistant | Yes | |
| Halogen free | No | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | JP |
| Original Packaging | Bag with 100 pieces |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
